Matt Roy's Bikes

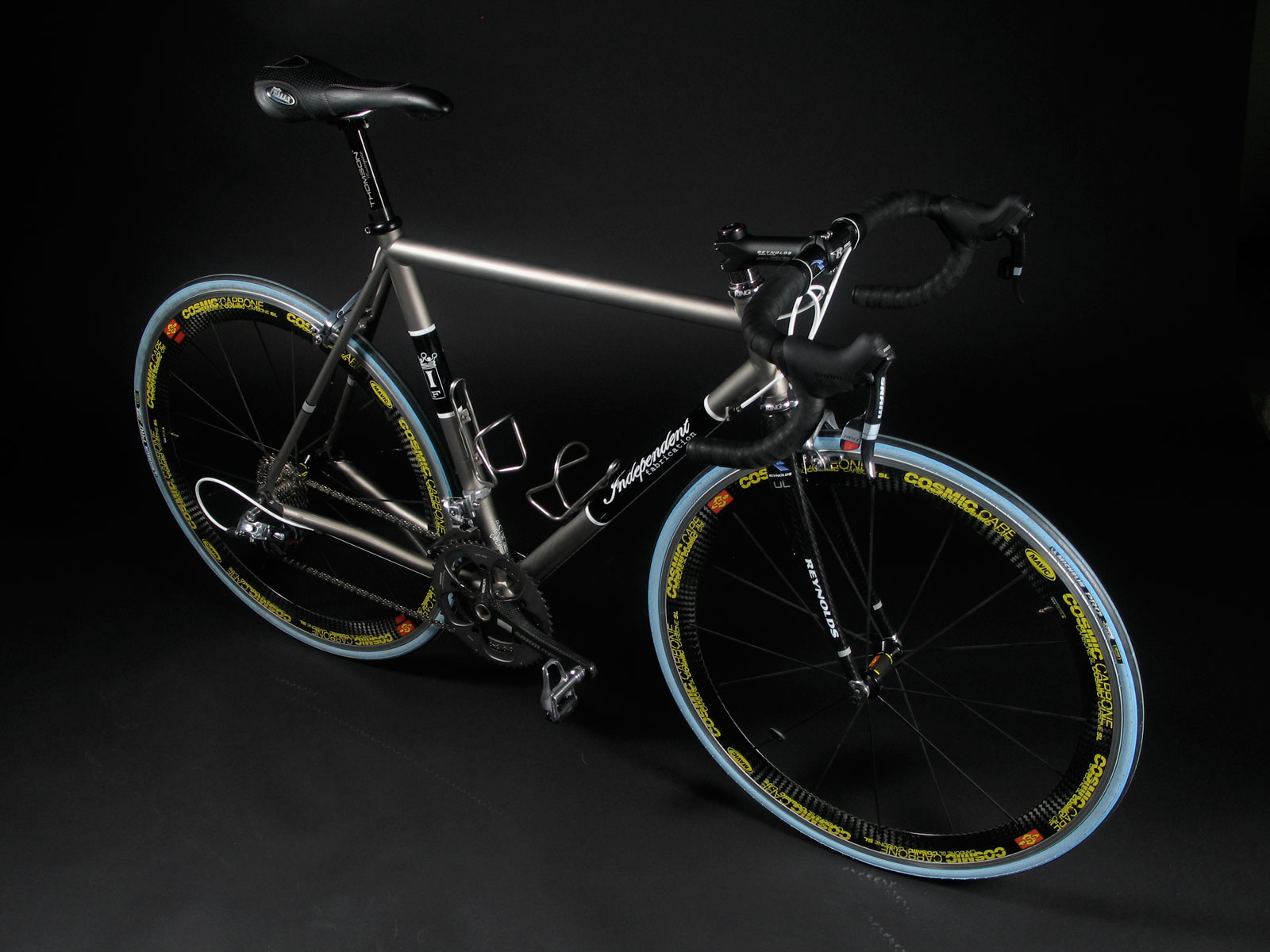

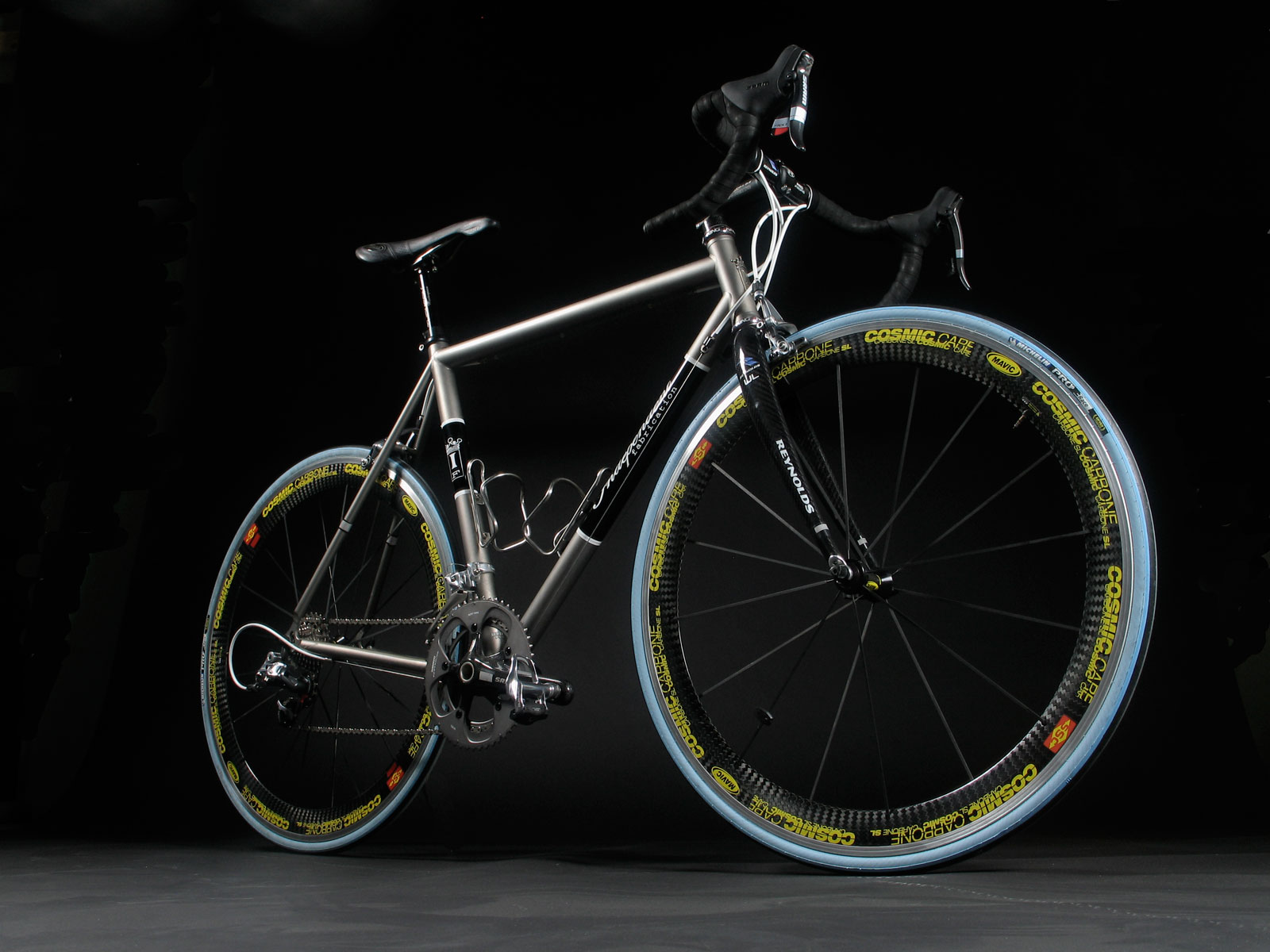

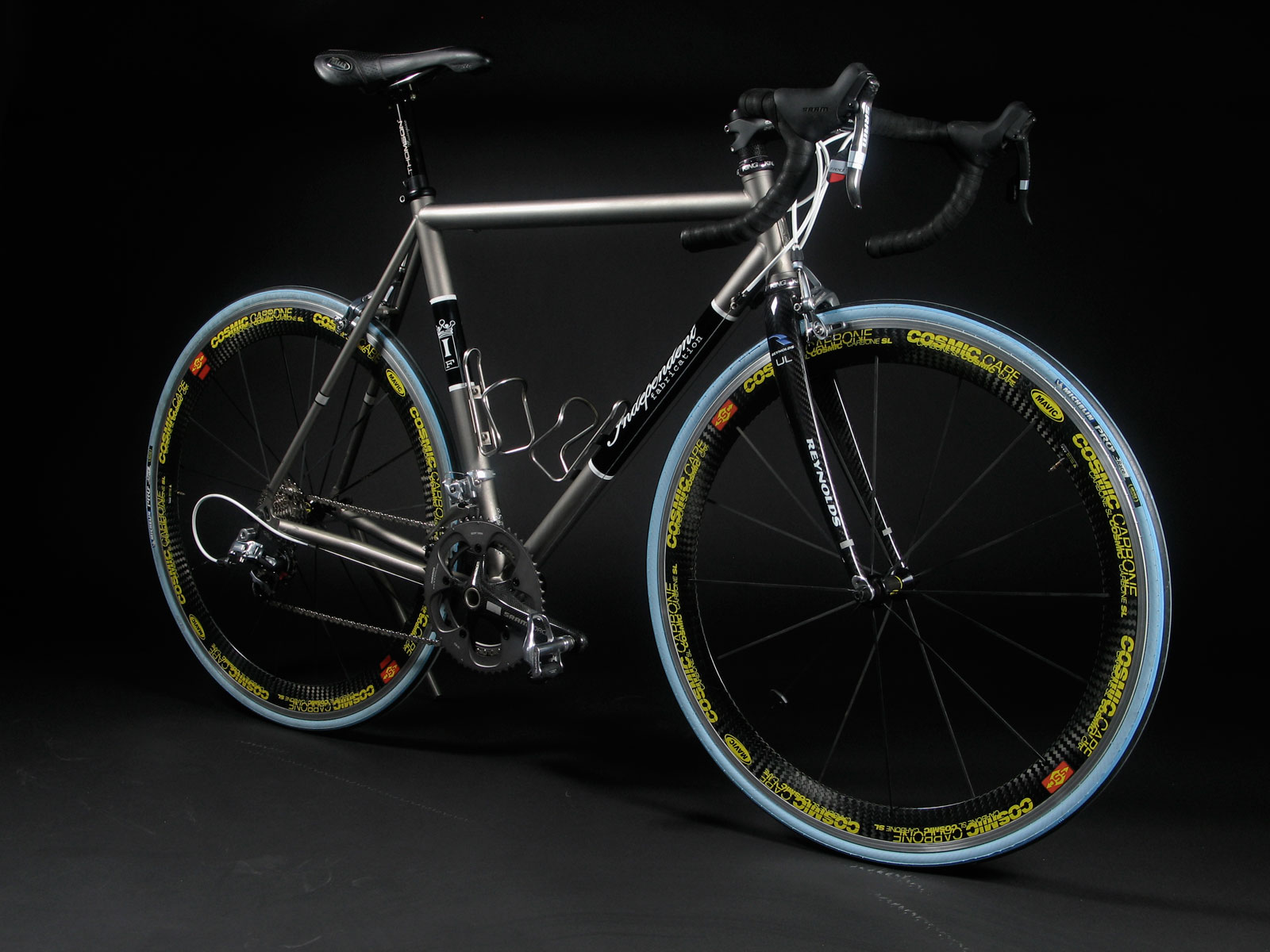

Independent Fabrication Ti Crown Jewel -

Finally, Matt owns a custom bike.  The Ti Crown Jewel was designed to be Matt’s go-to long distance machine.  I.F.’s Matt Bracken helped Matt create a bike with a geometry that would be comfortable for the long haul but with the snappiness and weight of a race worthy road bike.  The shot-peened 3/2.5 titanium frame is custom painted with black panels and hand-painted Independent Fabrication logos and finished off with Reynold’s UL fork and a Chris King platinum headset.  After the first few pedal strokes Matt could tell that this bike was like none other he had ever ridden.  It is the most comfortable, most effortless bike he has ever owned.

Frame Independent Fabrication Ti Crown Jewel
Fork Reynolds UL (43mm rake)
Critical measurements
Rider's height 5' 10"
Rider's weight 160lbs
Seat tube length, c-c 430mm
Seat tube length, c-t n/a
Top tube length 555mm (horizontal)
Saddle height, from BB (c-t) 707mm
Saddle nose tip to C of bars 532mm
C of front hub to top of bars 546mm
Bottom bracket SRAM RED
Cranks SRAM Force with RED 39/53 Chainrings, 172.5mm
Chain SRAM PC1090R
Front derailleur SRAM RED
Rear derailleur SRAM RED
Front brake SRAM RED
Rear brake SRAM RED
Brake levers SRAM RED
Shift levers SRAM RED
Rear sprockets SRAM RED 11-26t
Wheelset Mavic Cosmic Carbone Clincher
Tires Michelin Pro Race 2 700x23
Tubes Michelin Aircomp Latex

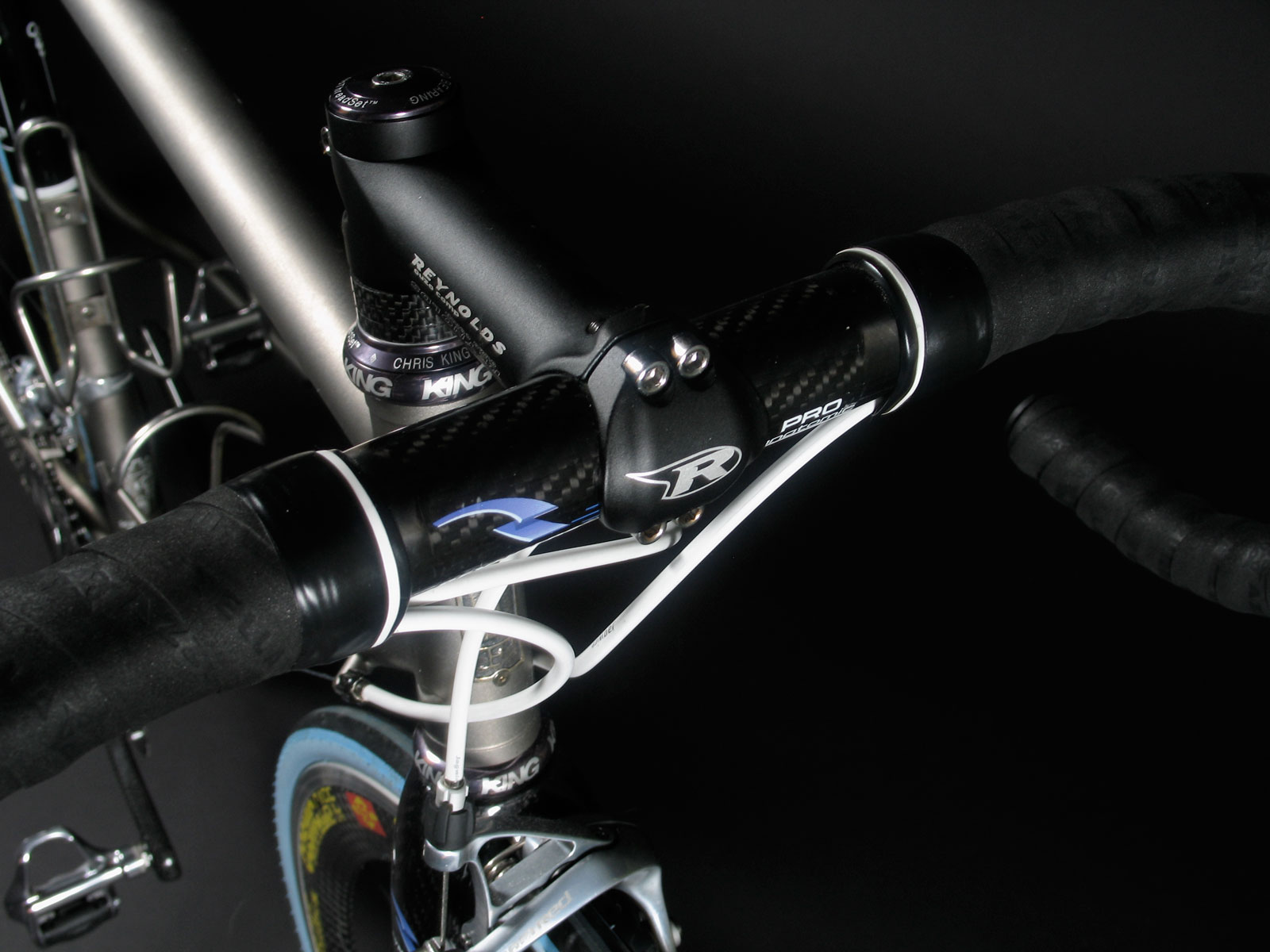

Bars Reynolds Ouzo Pro Anatomic Handlebar - 44cm
Stem Reynolds Ouza Race, 110mm x -6°
Headset Chris King NoThreadset Platinum
Tape/grip Stella Azzurra
Pedals Shimano Dura-Ace PD-7810
Seat post Thomson Masterpiece
Saddle Selle Italia Classic Flite Gel
Bottle cages Andrews King Titanium
Other accessories computer - Custom IF Cateye Wireless Strada
Total bike weight 7.2kg (15.9lb)
